TSMaster-based Tablet PC Solution

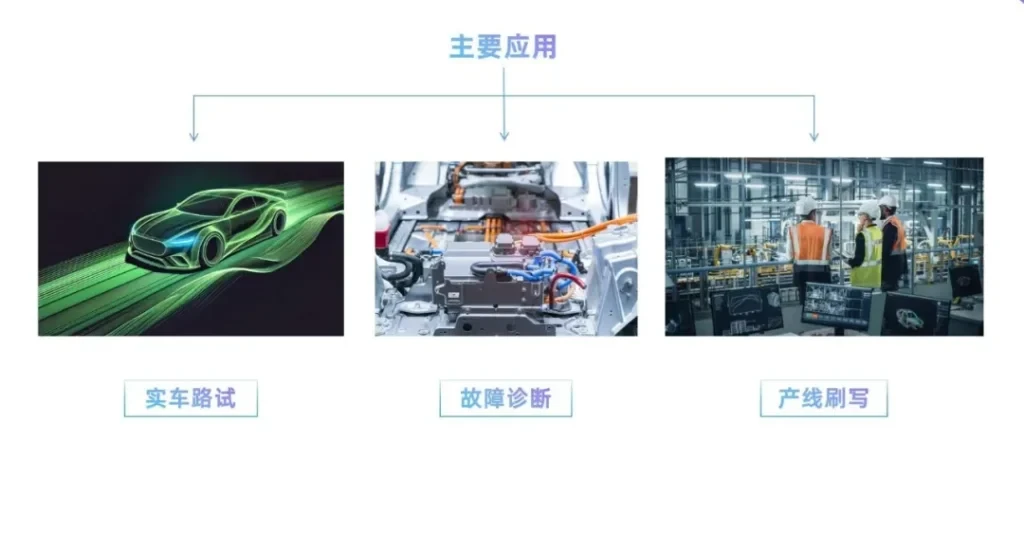

TSMaster-based tablet is a comprehensive product integrating TSMaster software platform and various bus analysis hardware tools, aiming to give full play to the advantages of TOSUN's self-developed technology and solve the engineering problems in the scenarios of real-vehicle road test, production line flashing and after-sales diagnosis.
Case 1: Electric Heavy Truck Aftermarket Diagnostics

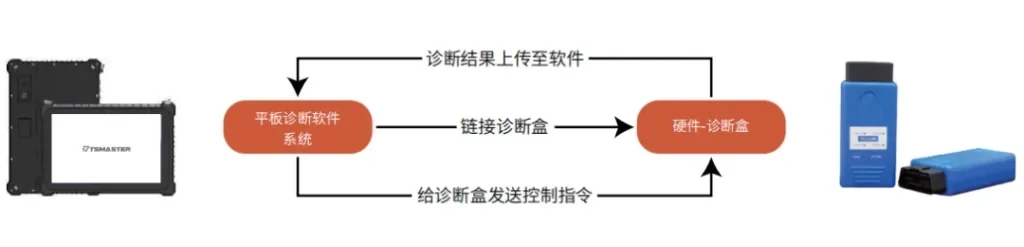

This case is mainly based on a set of solutions developed by TSMaster and TOSUN TPAD1003 and TC1114B, which provide a series of functions for after-sale diagnosis of electric heavy trucks.
Product Configuration
TPAD1003+TC1114B
Main Functions
- Fault code reading
- Clear Fault Codes
- Read frozen data frame
- Read data stream
- Motion Testing
- Data stream storage function
- Read frozen data frame
- Repair Manual Guide
- Rapid diagnosis
- Report Upload
- Remote Diagnostics for Report Analysis
- Read the version information of the electronic control unit
- Diagnose system versioning
- software upgrade
- ECU Software Version Management
Case 2: Commercial Vehicle Diagnostic System
Commercial Vehicle Diagnostic System is a set of diagnostic system developed based on TSMaster and TOSUN hardware tool TC1113B, with modules of fault detection, action test, connection status, flashing. It can help aftermarket/R&D engineers find and solve vehicle problems more accurately and improve vehicle safety.
Product Configuration
TPAD1003+TC1113B
Case 3: Automotive production line flashing system
The automotive production line brushing system is a set of system developed based on Tongxing TPAD2002 product, which not only has two channels of CAN/CAN FD built-in, but also supports one channel of Ethernet, and at the same time, it supports CAN/CAN FD based brushing and DoIP brushing. The device adopts a triple-proof industrial design, featuring ruggedness, thinness and lightness, and efficient protection.
Case 4: Automotive real-world test system
TPAD3005 is a tablet PC developed by TOSUN to meet the needs of real-vehicle debugging conditions, which supports 4-channel acquisition/playback of CAN data, loading of A2L variables, UDS diagnosis, XCP calibration, remote alarms, remote control, and return of alarm messages.
Product Configuration
TPAD3005
TOSUN Cloud Platform

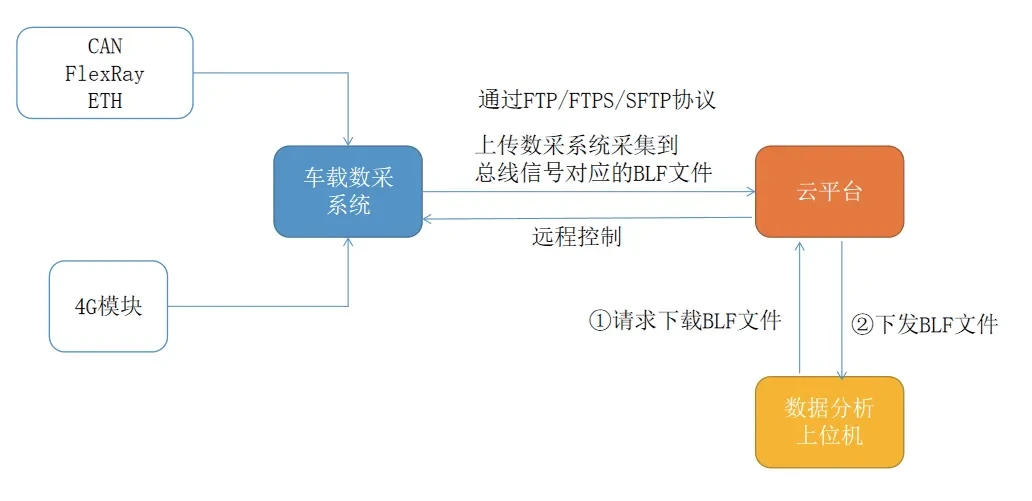

This system is also paired with TOSUN cloud platform, the main functions of which include equipment configuration and management, test project management, bus file storage and management, account login module, account privileges and management, and so on. Among them, bus file storage and management includes DBC file uploading and downloading, blf file encryption and decryption, blf file uploading and downloading, file advanced search, bus data API interface, flashing/calibration file uploading, customized file uploading and so on.
Case 5: Automotive real-vehicle test and analysis equipment
In the process of vehicle and all kinds of ECU development and testing verification, engineers usually need to record the bus data on the vehicle network for subsequent data analysis. The real-vehicle test system is a technology that can record and store all kinds of data of the vehicle. The real-vehicle test system of the car is based on TPAD2003, which realizes the self-starting of power-on and boot-up, the automatic recording of the bus, and the automatic uploading of the bus file to realize the recording of the market data.
Product Configuration
TPAD2003
Main Functions
In addition to the functional modules of the bus, the TPAD3005 also supports oscilloscope systems with protocol analysis. The core function point of the oscilloscope module of this product, in addition to basic waveform acquisition and display, also supports the analysis of customer communication protocols, which is used to trigger the acquisition of key waveforms by configuring a dedicated protocol data unit as a trigger condition.
It mainly contains the development of the following functional modules:
- Waveform data storage
- Waveform data playback, analysis, export
- Trigger-based acquisition: In addition to the conventional CAN/CANFD/LIN protocols, the trigger protocols also support CATL's customized protocol data.
- Configuration Modules
Contact Us
For more automotive test solutions, please contact us by private message or email, TOSUN will be happy to provide you with customized solutions.
