Road test to aftermarket, one-stop vehicle test and diagnostic tools

The solution based on TSMaster TPAD-series

The solution based on TSMaster TPAD-series is a comprehensive product that integrates the TSMaster software platform and a variety of bus analysis hardware tools to solve engineering challenges in scenarios such as real-vehicle road tests, production line brushing and after-sales diagnostics.
Enquire Now
The solution based on TSMaster TPAD-series
hardware_line

High integration and multi-scenario applications

The products cover the whole process from development and testing to after-sales diagnosis, and are compatible with a variety of protocols and hardware configurations, truly realizing one-stop solutions.

real-vehicle road test

Production line brushing

fault diagnosis

typical case

Flexible customization to meet different needs

CASE /

Electric Heavy Duty Aftermarket Diagnostics

Product Configuration
TPAD1003 + TC1114B

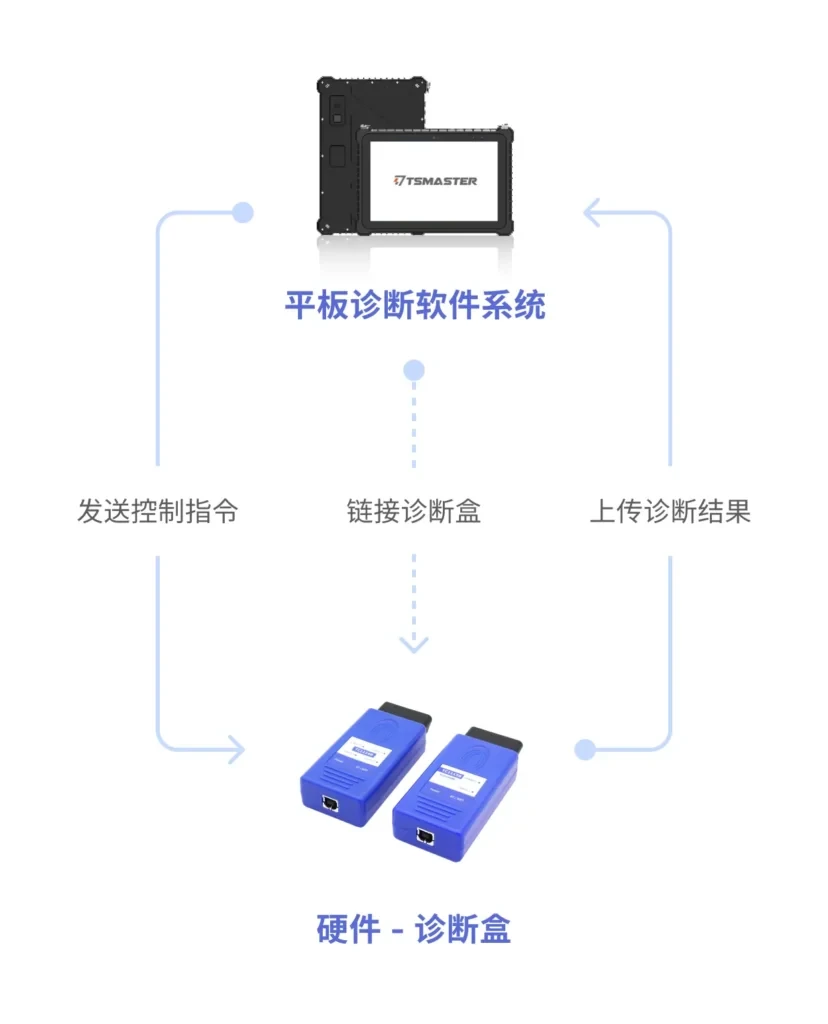

This case is mainly based on a set of solutions developed by TSMaster and TOSUN TPAD1003 and TC1114B, which provide a series of functions for after-sale diagnosis of electric heavy trucks.

Main Functions
  • Fault code reading
  • Clear Fault Codes
  • Read frozen data frame
  • Read data stream
  • Motion Testing
  • Data stream storage function
  • Read frozen data frame
  • Repair Manual Guide
  • Rapid diagnosis
  • Report Upload
  • Remote Diagnostics for Report Analysis
  • Read the version information of the electronic control unit
  • Diagnose system versioning
  • software upgrade
  • ECU Software Version Management

Commercial Vehicle Diagnostic System

Product Configuration
TPAD1003 + TC1113B

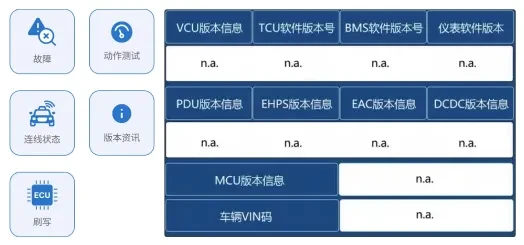

Commercial Vehicle Diagnostic System is a set of diagnostic system developed based on TSMaster and TOSUN hardware tool TC1113B, with modules of fault detection, action test, connection status, flashing. It can help aftermarket/R&D engineers find and solve vehicle problems more accurately and improve vehicle safety.

Commercial Vehicle Diagnostic System
Commercial Vehicle Diagnostic System

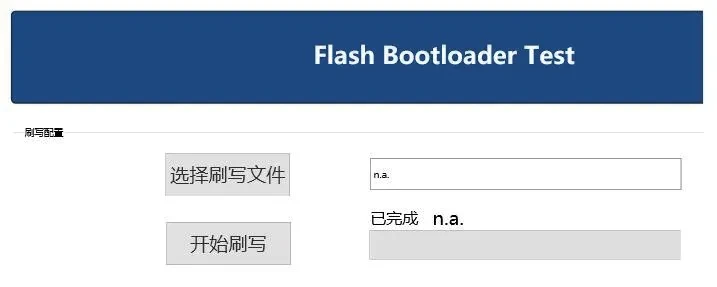

Automotive production line brush writing system

The automotive production line flashing system is a set of system developed based on TOSUN TPAD2002 product, which not only has two channels of CAN/CAN FD built-in, but also supports 1 channel of Ethernet, and at the same time, it supports CAN/CAN FD-based flashing and DoIP flashing. The device adopts a triple-proof industrial design, featuring ruggedness, thinness and lightness, and efficient protection.

Automobile test system

Product Configuration
TPAD3005
TPAD3005 is a tablet PC developed by TOSUN to meet the needs of real-vehicle debugging conditions, which supports 4-channel acquisition/playback of CAN data, loading of A2L variables, UDS diagnosis, XCP calibration, remote alarms, remote control, and return of alarm messages.
TOSUN Cloud Platform

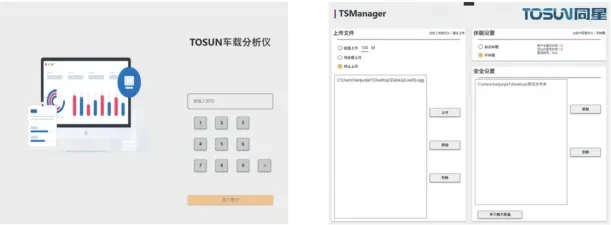

The system integrates with the same cloud platform, providing equipment configuration, test project management, bus file storage and management, account privilege control and other functions. Among them, the bus file management supports uploading and downloading of DBC files and blf files, encryption and decryption, advanced searching and customized uploading of brush writing/calibration files to meet the needs of multiple scenarios.
Automobile test system
Automobile test system

Automotive test and analysis equipment

Product Configuration
TPAD2003

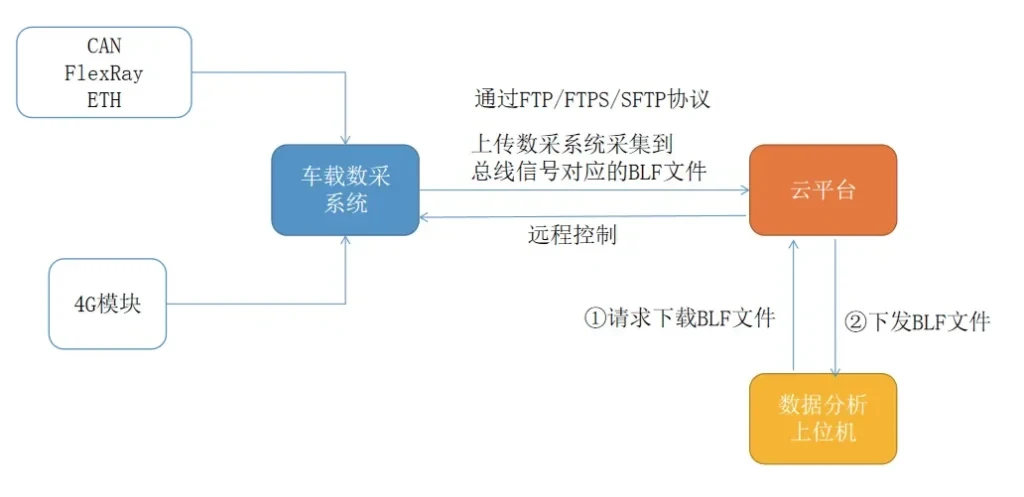

In vehicle and ECU development tests, engineers need to record vehicle network bus data for analysis. The TPAD2003-based real vehicle test system supports power-on self-start, automatic recording and uploading of bus files, realizing efficient data storage and management.
Main Functions

In addition to the bus function module, the TPAD3005 integrated protocol analysis oscilloscope system supports waveform acquisition, display, and communication protocol analysis, and triggers critical waveform acquisitions with a dedicated protocol data unit.

It mainly contains the development of the following functional modules:

  1. Waveform data storage
  2. Waveform data playback, analysis, export
  3. Trigger-based acquisition: Trigger protocols in addition to the usual
  4. The CAN/CANFD/LIN protocol also supports CATL's customized protocol data.
  5. Configuration Modules
The solution based on TSMaster TPAD-series
Automobile test system
Is the product suitable for autonomous driving tests?

Yes. The solution based on TSMaster TPAD-series supports multi-protocol communication and waveform data analysis to meet the ECU testing needs associated with autonomous driving.

What is the data security of TOSUN Platform?

TOSUN platform provides data encryption storage and management function, supports blf file encryption and decryption, and ensures the integrity and security of each piece of data.

Does it support rapid deployment in field environments?

Support. The product is lightweight and portable, with an industrial-grade design for harsh environments, and a power-up and self-start function for fast test work.
