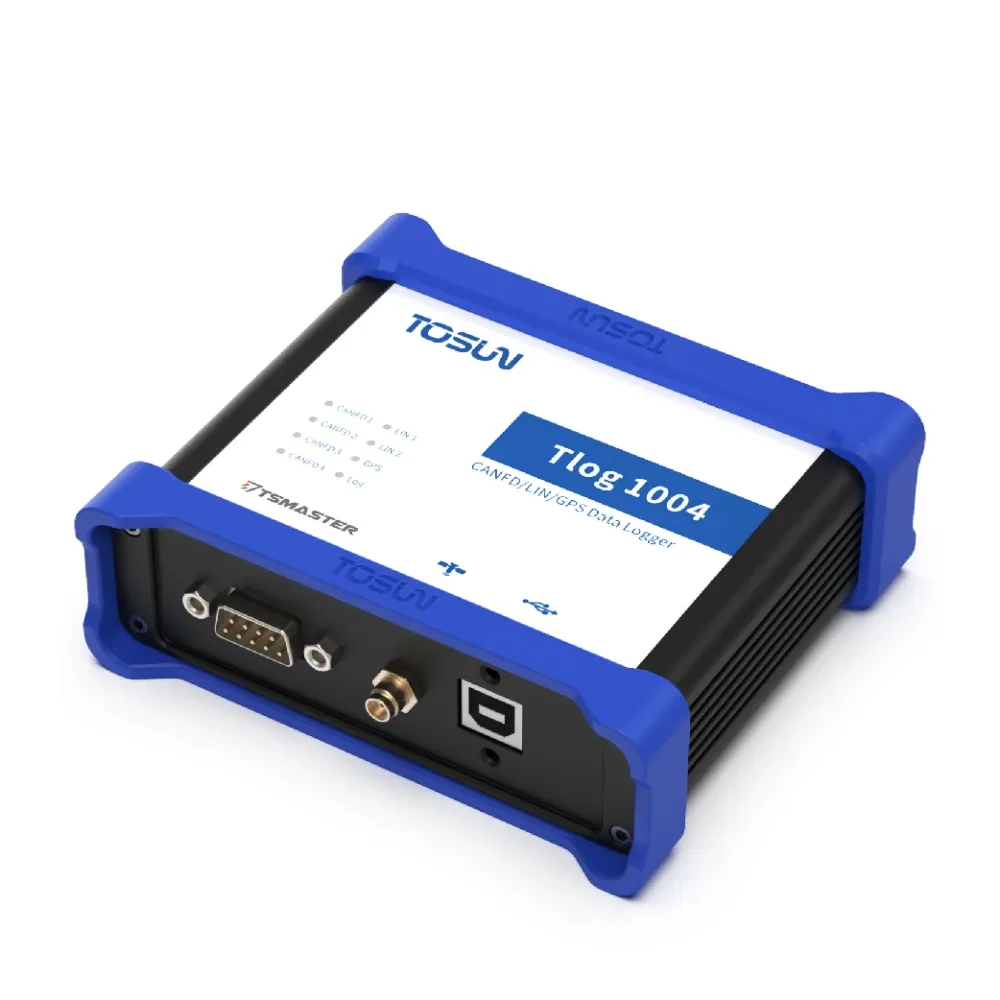

Tlog1004 - 4 CH CAN FD, 2 CH LIN bus logger
TLog1004 is a multi-channel CAN/CAN FD/LIN bus logger device introduced by TOSUN, the highest rate of CAN FD bus support 8Mbps, LIN bus rate of 0 ~ 20kbps, while the built-in multi-channel digital and analog IO interfaces, convenient for a variety of signal measurements and system integration, comes with 64G storage, the product adopts the USB2.0 interface and PC The product adopts USB2.0 interface to connect with PC, and Windows and Linux system are designed without driver to make the device have system compatibility.
Description
Optional bus analyzer function, activate this function, the device can be used as a 4CAN FD + 2LIN bus analyzer and run with TSMaster software, supports loading DBC and ARXML database files, you can easily monitor, analyze, simulate the CAN bus data, ECU brushing and writing and so on. Optionally, UDS diagnostics, CCP/XCP calibration can be activated. The secondary development API for Windows and Linux supports various development environments, such as C++, C#, LabView, Python, etc., which makes it easy to integrate into various test systems with high efficiency and ease of use.
Features:
- Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps
- Internal Real-Time Clock
- Self-contained GPS, also available with GPS timing
- Built-in 64G eMMC storage
- LEDs indicate communication status
- Configurable trigger methods
- Data can be exported by connecting to a PC via USB
- Can be exported directly to BLF format files
- Exported BLF files can be played back directly in TSMaster software.
Typical applications.
- CAN/CAN FD/LIN message logging
- GPS data acquisition
- Road experiment data collection
Download TLog1004-Datasheet Simplified Chinese
Download TLog1004-User Manual Simplified Chinese
Download TLog1004-Datasheet English-version
Download TLog1004-UserManual English-version
其他信息
| PC side | USB2.0 interface |
|---|---|
| CAN terminal/LIN terminal | DB9 interface |
| Drive | Drive-free design for Windows, Linux systems with system compatibility |
| Cache | Hardware caching to ensure no frame loss |
| CAN | Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps |
| CAN FD | Supports ISO and non-ISO standard CAN FD with baud rate up to 8Mbps. |
| LIN | Supports LIN 1.3 and 2.x, baud rate 0-20kbps |
| Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
| Messages per second* | Maximum 20,000 fps |
| Messages received per second* | Maximum 20,000 fps |
| * | Single channel 1Mbps, 0 byte data field case |
| Isolation | CAN channel DC2500V isolation, electrostatic level contact discharge ±4KV, air discharge ±8KV |
| Electricity supply | USB power supply or external 9~36V |
| power wastage | 3W |
| Shell material | cooking oil |
| Size | Approx. 108*96*35mm |
| weights | Approx. 263g (unpackaged) |
| Operating temperature | -20℃~60℃/-40℃~80℃ (without battery) |
| Operating humidity | 10% to 90% (non-condensing) |
| working environment | Keep away from corrosive gases |
