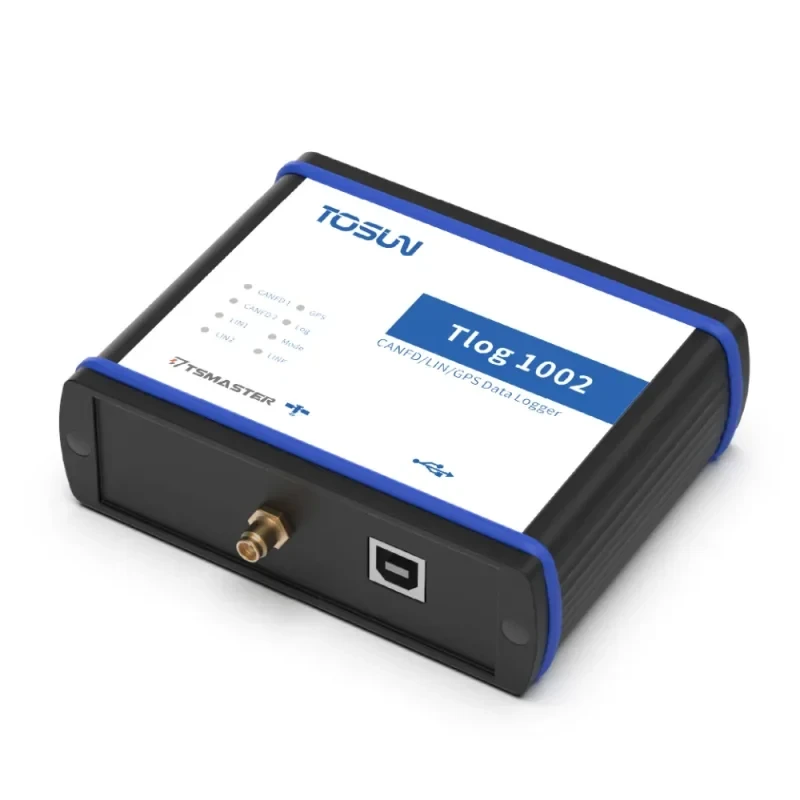

Tlog1002 - Multi-Channel CAN FD/LIN Bus Logger
TLog1002 is a multi-channel CAN/CAN FD/LIN bus logger device introduced by TOSUN, the highest rate of CAN FD bus support 8Mbps, LIN bus rate of 0 ~ 20kbps, while the built-in multi-channel digital and analog IO interfaces, convenient for a variety of signal measurements and system integration, comes with 64G storage, the product adopts the USB2.0 interface and PC The product adopts USB2.0 interface to connect with PC, and Windows and Linux system are designed without driver to make the device have system compatibility.
Description
Interface.

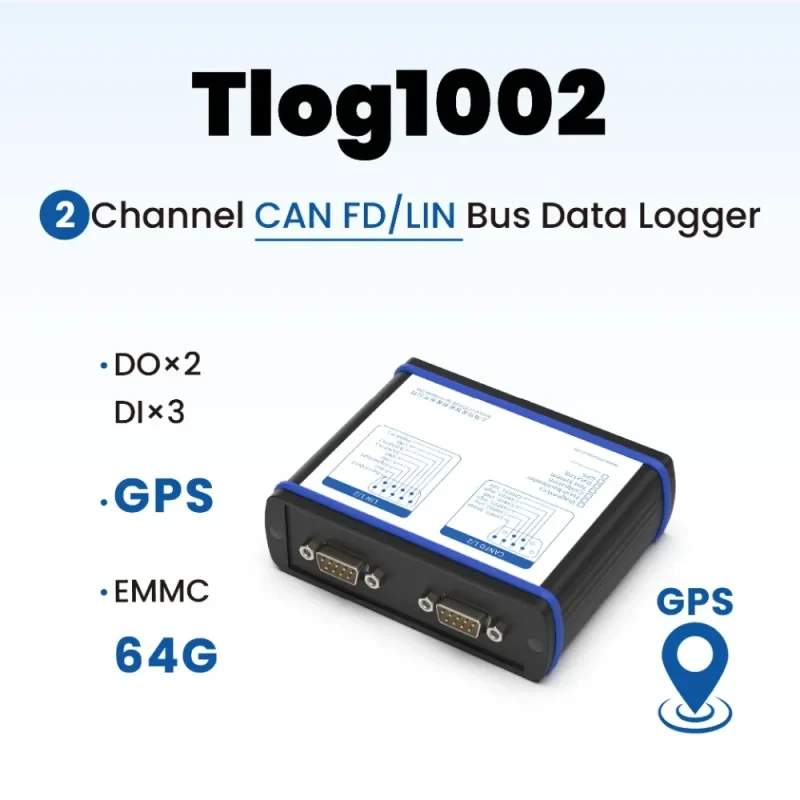

- USB 2.0 High speed *1
- DB 9 Male interface:
-CAN FD * 2
-LIN * 2
-Digital Input * 3
-EMMC: 64G
Support dbc file, a2l file, blf file, asc file, arxml file to meet the needs of automotive CAN bus development, testing, calibration and diagnosis.
Support for secondary application development API interfaces for Windows and Linux systems allows the device to be easily integrated into other devices or software systems.
It can be used by R&D personnel, ECU production line, test engineers, and after-sales personnel.
Features:
- Time stamp resolution 1 μs, which meets advanced requirements.
- High-speed USB 2.0 interface and Windows drive-free design for excellent system compatibility.
- CAN channel DC2500V isolation.
- Automotive-grade design, supporting dbc files, a2l files, blf files, asc files.
- Support for blf, asc format data recording and offline/online playback.
- Built-in script editing, supporting virtual simulation and semi-physical simulation.
- Supports UDS diagnostics and CCP/XCP calibrations.
- Support the same star CAN/LIN Flash BootLoader series software.
- Support Windows, Linux system secondary development interface, 64G storage;
- Unique LIN message free sending mode, which reduces the debugging threshold for LIN bus development.
- Can be used independently of a PC.
Services:
- PC-based software customization
- Device communication interface integration
- BootLoader customization
- CCP/XCP protocol customization
- Customized diagnostic protocols
- Function Customization
- Production Line Integration
- CAN/CAN FD/LIN message logging
- GPS data acquisition
- Road experiment data collection
Download TLog1002-Datasheet Simplified Chinese
Download TLog1002-User Manual Simplified Chinese
Download TLog1002-Datasheet English-version
Download TLog1002-UserManual English-version
其他信息
| Passage | 2xCAN FD / 2xLIN |
|---|---|
| PC side | High-speed USB 2.0 interface |
| CAN/LIN side | DB9 interface |
| Drive | Drive-free design for Windows, Linux systems with system compatibility |
| Cache | Hardware caching to ensure no frame loss |
| LIN | Supports LIN1.3 and 2.x, baud rate 0-20Kbps |
| CAN | Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps |
| CAN FD | Supports ISO and non-ISO standard CAN FD with baud rate up to 8Mbps. |
| Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
| Messages per second* | Maximum 20,000 fps |
| Messages received per second* | Maximum 20,000 fps |
| * | Single channel 1Mbps, 0 byte data field case |
| Isolation | CAN channel DC2500V isolation, electrostatic level contact discharge ±4KV, air discharge ±8KV |
| Electricity supply | USB power supply or external 9~32V |
| power wastage | 2W |
| Shell material | cooking oil |
| Size | Approx. 108*96*35mm |
| weights | Approx. 129g (unpackaged) |
| Operating temperature | -20℃~60℃/-40℃~80℃ (without battery) |
| Operating humidity | 10% to 90% (non-condensing) |
| working environment | Keep away from corrosive gases |
