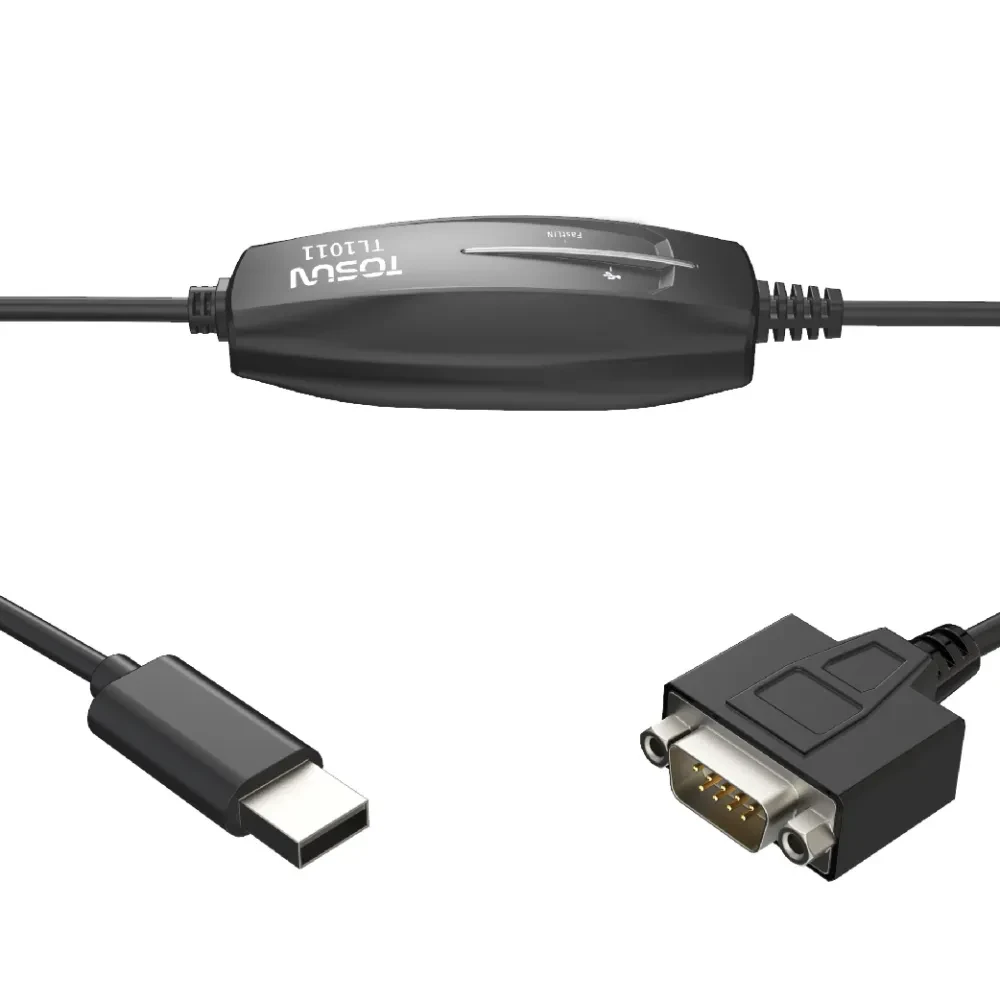

TL1011 - 1x Fast LIN Bus to USB Interface

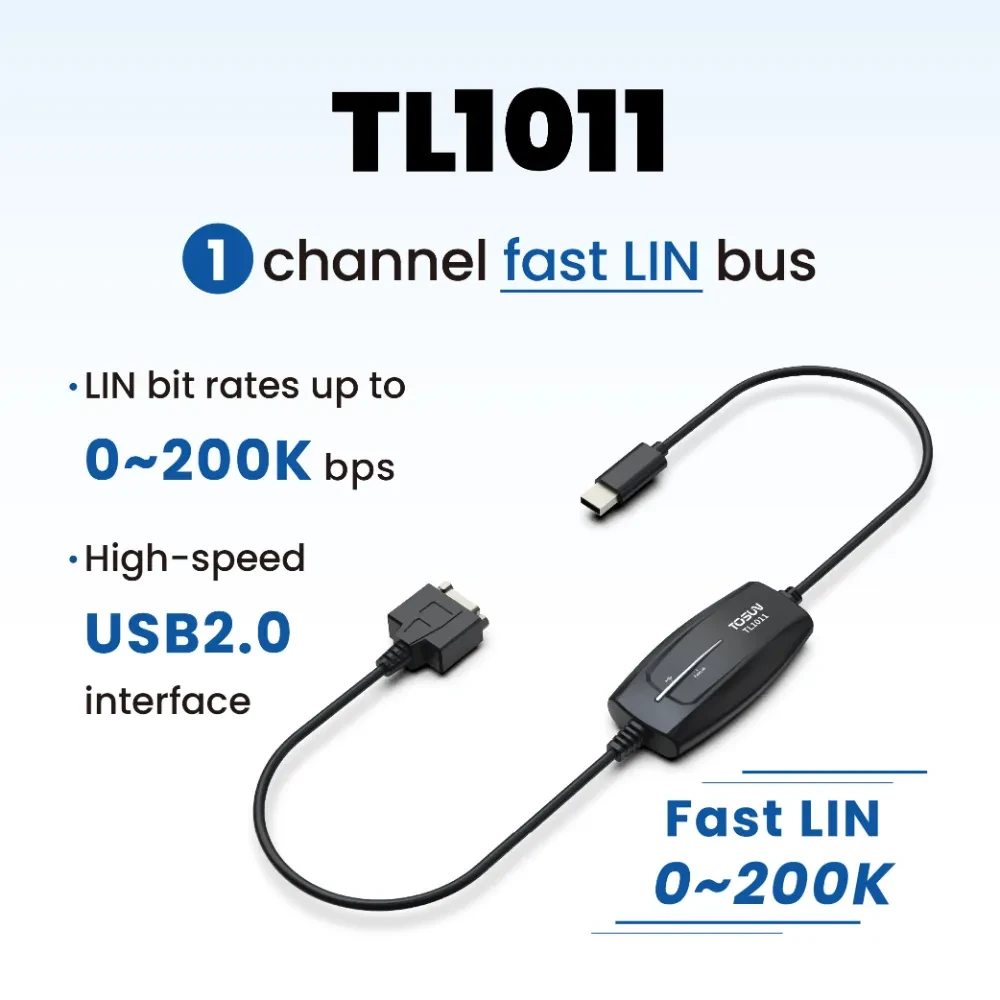

TL1011 is a portable and easy-to-install 1-way Fast LIN bus to USB interface device introduced by TOSUN, LIN bus device support rate of 0~200 Kbps, the product adopts the USB2.0 interface to connect with the PC, support for DC external power supply, Windows, Linux system drive-free design makes the device has excellent system compatibility.
Description
Combined with the powerful TSMaster software, which supports loading LDF format database files, it can easily monitor, analyze and simulate LIN bus data, and also support UDS diagnosis, ECU flashing functions.
Secondary development API for Windows and Linux, supporting various development environments such as C++, C#, LabView,
Python, etc., easy to integrate into various test systems, efficient and easy to use.
Features:
- µs (microsecond) level hardware message timestamps for high level requirements
- USB2.0 interface, Windows, Linux system system drive-free design, with excellent system compatibility
- Unique free-send mode reduces the threshold for LIN bus development and debugging
- Automotive grade design with LDF file support
- Supports LIN bus UDS-based diagnostics
- Supports UDS-based Flash Bootloader
- Support Windows, Linux system secondary development interface
- The power supply for this product offers two options: internal power supply and external power supply. If internal power supply is selected, the maximum output voltage provided by the product is 12V. If external power supply is selected, it can accept a voltage of up to 36V.

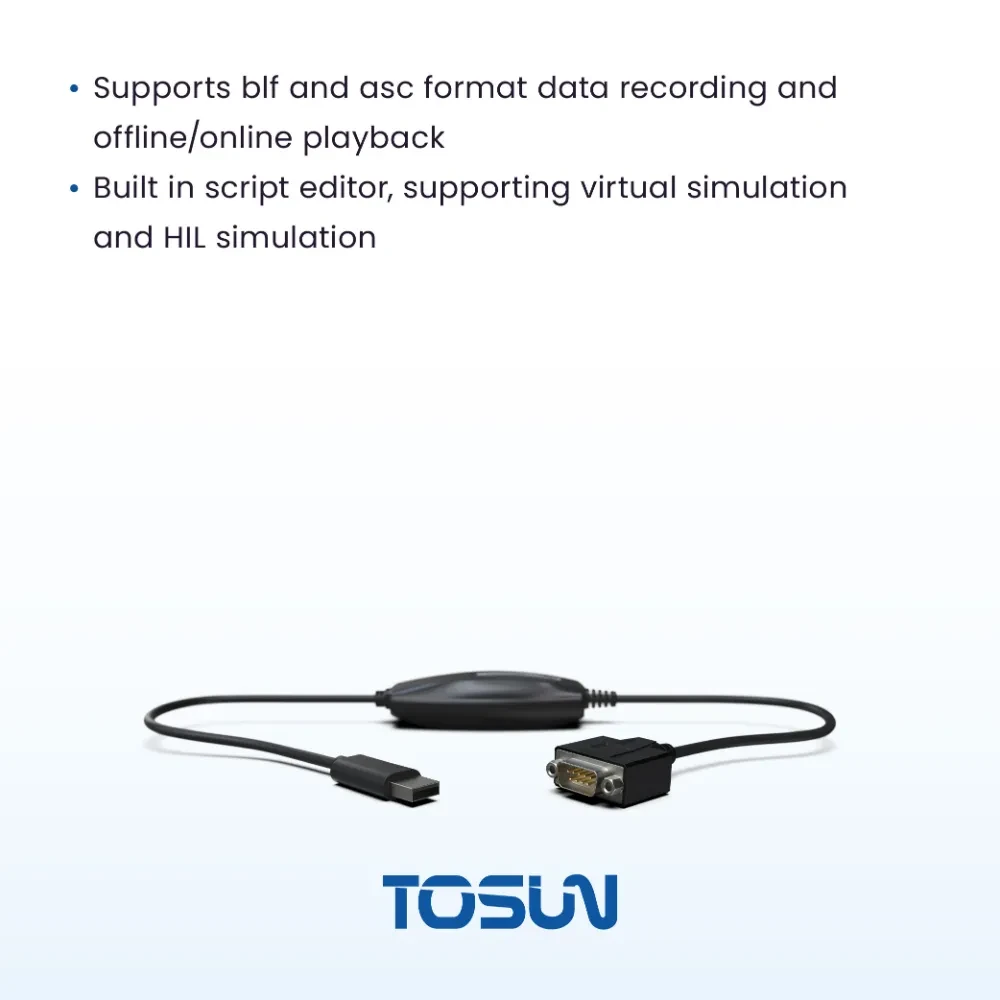

- Supports data recording and offline/online playback of blf, asc, etc.
- Built-in script editor, support virtual simulation, semi-physical simulation
Services:
- ECU Data Acquisition
- Various test benches
- ECU Flashing
- Fast LIN support
Download TL1011-Datasheet Simplified Chinese
Download TL1011-User Manual Simplified Chinese
Download TL1011-Datasheet English version
Download TL1011-UserManual English version
其他信息
| Passage | 1 x Fast LIN |
|---|---|
| PC side | High-speed USB 2.0 interface |
| LIN side | DB9 interface |
| Drive | Drive-free design for Windows, Linux systems with system compatibility |
| LIN | Supports LIN 1.3 and 2.x with port rates from 0-200Kbps. |
| Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
| Scheduler | Support LDF file and run the scheduling table, you can also configure your own scheduling table |
| Relay Type | Signal relay (non-magnetically held) |
| Electricity supply | USB powered, supports external DC power (9-36V) |
| power wastage | Typical 1W |
| Shell material | plastics |
| Size | Approx. 94 x 48 x 24mm |
| weights | Approx. 108g (unpackaged)/Approx. 303g (with packaging, wiring) |
| Operating temperature | -40℃～80℃ |
| Operating humidity | 10% to 90% (non-condensing) |
| working environment | Keep away from corrosive gases |
