New Product Release
Following the launch of PCIe interface devices TP1013 and TP1018 new products, TOSUN Technology PCIe series products TP1026P was officially unveiled! This product not only supports CAN FD bus to PCIe interface, but also supports multi-channel LIN interface. Mainly used in LIN bus simulation and testing and various automated test systems.

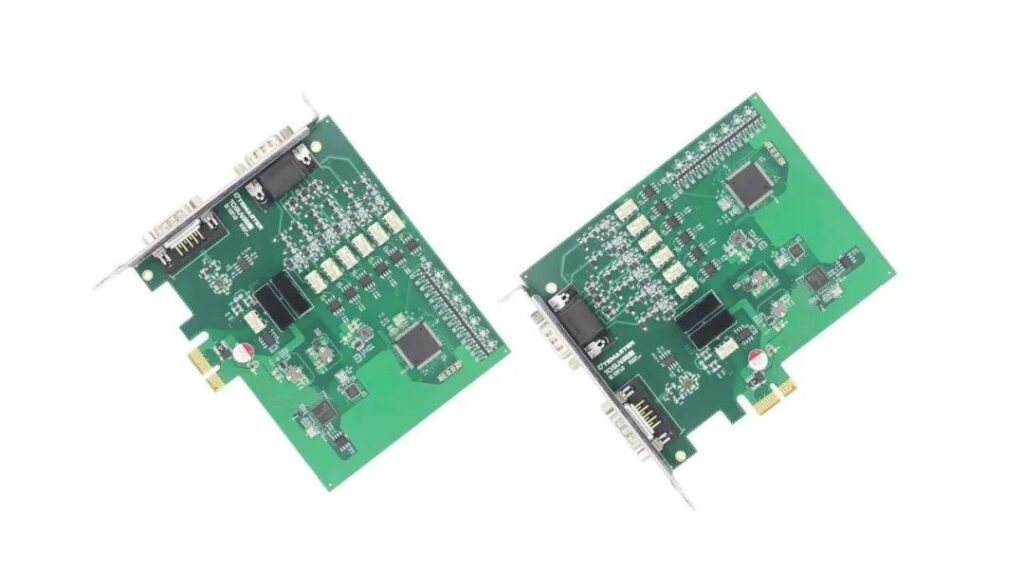

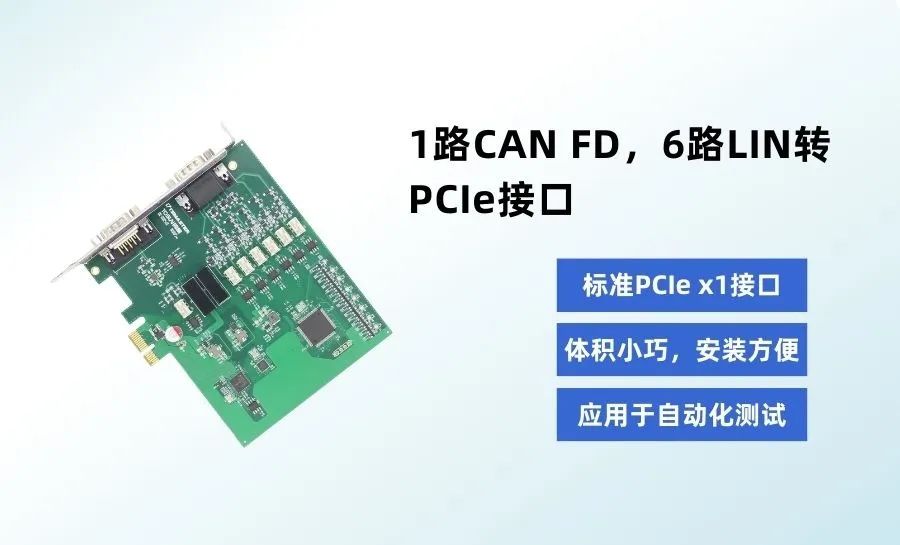

TP1026P-1CH CAN FD, 6CH LIN to PCIe Interface
1. Product profile
The TP1026P is a 1-channel CAN FD, 6-channel LIN to PCIe interface tool.
The TP1026P interface card enables computers with PCIe slots to easily connect to LIN/CAN/CAN FD bus networks and monitor multiple bus networks in real time. Compact in size, it can be easily embedded into vehicle-mounted industrial controllers, single board computers (SBC), portable industrial control hosts, and industrial notebooks. Easy to install and simple to use.
Together with the powerful TSMaster software, it can easily monitor, analyze and simulate LIN and CAN FD bus data, and also support UDS diagnostics, ECU flashing functions.
Support secondary development API, can support all kinds of development environments, such as C++, C#, LabView, Python, etc., easy to integrate into a variety of test systems, efficient and easy to use.
2. Typical applications
- LIN bus simulation and testing
In various automated test systems
3. Main functions
- Hardware message timestamping at us (microsecond) level for high level requirements
- Drive-free design for Windows/linux systems with excellent system compatibility
- Standard PCIe x1 interface
- Number of channels: 6 channels LIN interface, 1 channel CAN/CAN FD interface
- CAN channel DC2500V isolation
- Support for database files such as LDF, DBC, ARXML, etc. through TSMaster software
- Supports BLF and ASC format data logging and offline/online playback
- LIN-capable UDS diagnostics and Flash Bootloader
- Supporting Windows, Linux system secondary development API interface
- All paid licenses for TSMaster software can be loaded
4. Technical parameters
General parameters | |
Passage | 6 x LIN 1 x CAN FD |
PC terminal | Standard PCIe interface |
CAN/LIN terminal | D-Sub9/D-Sub15 |
Drive | Windows system drive-free design, with excellent system compatibility |
Cache | Hardware caching to ensure no frame loss |
CAN | Support CAN2.0A and B protocols, conforming to ISO11898-1 specification, baud rate 5Kbps-1Mbps |
CAN FD | Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps |
LIN | Supports LIN 1.3 and 2.0 at baud rates of 0-20Kbps. |
Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
Terminal resistance | CAN side 120 ohms software configurable |
Messages per second* | Maximum 20,000mps |
Messages received per second* | Maximum 20,000mps |
Isolation | CAN channel DC2500V isolation |
Electricity supply | PCIe power supply |
Size | 141*125*21.5mm |
Operating temperature | -40℃～70℃ |
*Note: CAN single channel 1Mbps, 0 byte data field case
