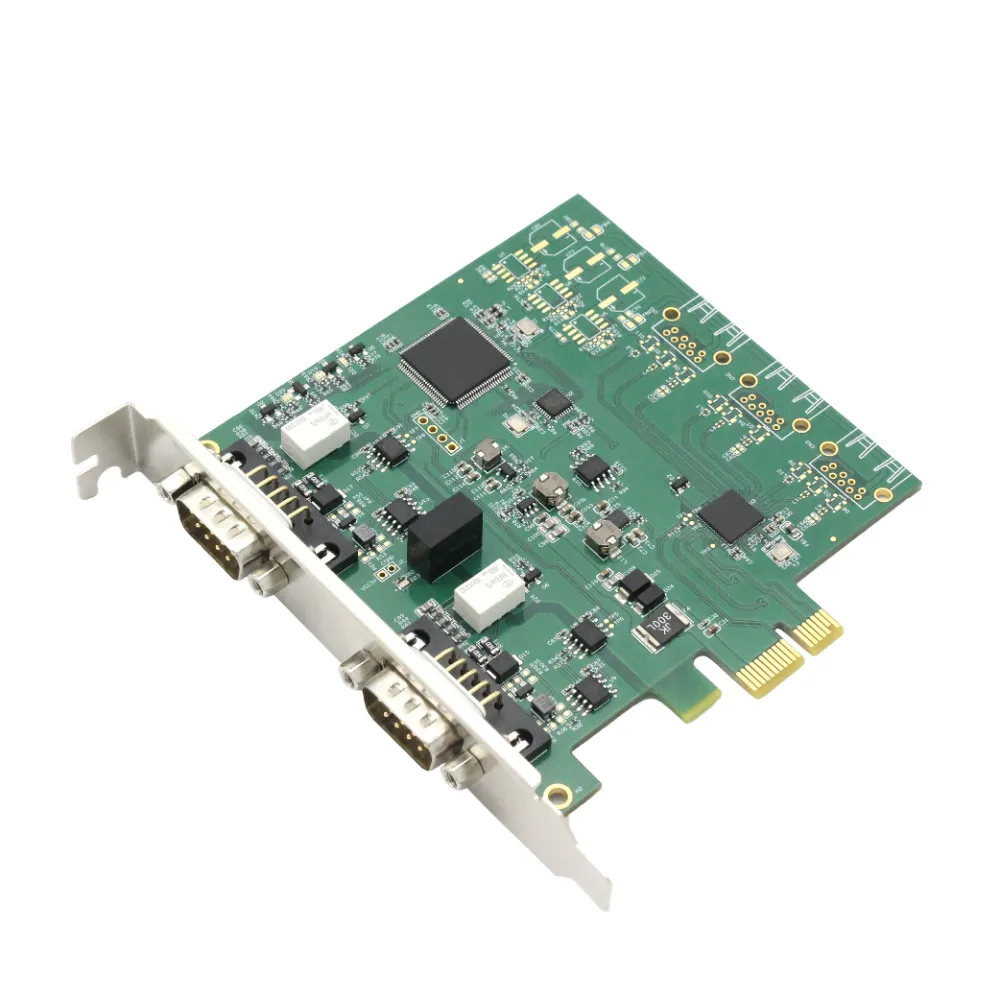

TP1013 is a 2-channel CAN FD bus to PCIe interface device developed by TOSUN Technology Ltd. With the powerful TSMaster software, it can easily monitor, analyze and simulate CAN FD bus data, and also support UDS diagnostics, ECU flashing, CCP/XCP calibration and other functions. It is widely used in automated data acquisition and testing.

1. Product profile

TP1013 is a 2-way CAN FD bus to PCIe interface device; it can easily perform CAN FD/CAN network development, simulation, and testing.

TP1013 interface card enables computers with PCIe slots to conveniently connect to CAN/CAN FD bus networks and monitor multiple bus networks in real time. Its compact size makes it easy to embed in vehicle-mounted IPCs, single board computers (SBCs), portable IPC hosts, and industrial notebooks. Easy to install and simple to use.

Together with the powerful TSMaster software, it can easily monitor, analyze and simulate CAN FD bus data, and also support UDS diagnosis, ECU flashing, CCP/XCP calibration and other functions.

Secondary development API, can support all kinds of development environments, such as C++, C#, LabView,,Python, etc., easy to integrate into a variety of test systems, efficient and easy to use.

2. Functional characteristics

Time stamp resolution 1 μs, which meets advanced requirements.
Windows drive-free design for excellent system compatibility;
Standard PCIe x1 interface;
Number of channels: Dual channel with isolated CAN FD interface, standard DB-9 connector provided via interface board;
CAN channel DC2500V isolation;
Automotive grade design, supports DBC file, A2L file, BLF file, ASC file, ARXML file;
Supports BLF and ASC format data logging and offline/online playback;
UDS diagnostics and CCP/XCP calibration can be supported;
Supports UDS-based Flash Bootloader;
Supporting Windows, Linux system secondary development API interface;
All paid licenses for TSMaster software can be loaded

3. Typical applications

Automated Driving Data Collection
In various automated test systems

4. Technical parameters

Hardware Technology	Specific parameters
Passage	2 x CAN FD
PC side	Standard PCIe interface
Drive	Windows system drive-free design, with excellent system compatibility
Cache	Hardware caching to ensure no frame loss
CAN	Support CAN2.0A and B protocols, conforming to ISO11898-1 specification, baud rate 5Kbps-1Mbps
CAN FD	Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps
Timestamp accuracy	1us, hardware message timestamp for higher-order requirements
Send messages per second	Maximum 17000mps
Messages received per second	Maximum 17000mps
Isolation	CAN channel DC2500V isolation, electrostatic level contact discharge ±8KV
Electricity supply	PCIe power supply
Size	100.5mm121mm21.59mm
Operating temperature	-40℃～85℃
